Oil and Gas
Process equipment and heat transfer solutions for upstream, midstream, and downstream oil & gas operations.
We offer a wide range of services, including thermal calculation, mechanical design, finite element analysis, manufacturing, and installation. Our experience in the Oil and Gas industry is well-established and continues to grow. We use advanced software to simulate the thermal behavior of your system and provide you with accurate results. Our mechanical design services are efficient, reliable, and cost-effective. Our finite element analysis services help you optimize your designs and reduce the risk of failure. Our manufacturing services meet the highest quality standards. Our installation services are carried out by experienced professionals who ensure that your systems are installed correctly and efficiently. We are committed to excellence and strive to exceed your expectations every step of the way.
Contact Us

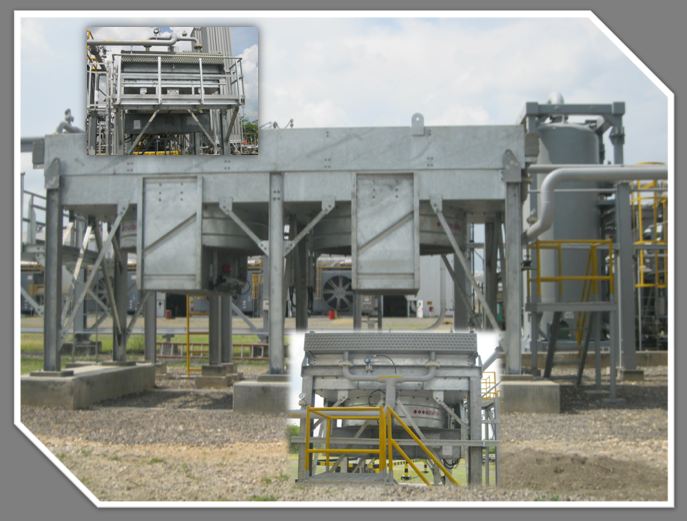

Air Cooler Heat ExchangerCrude Oil Cooler HE-1551
Early Production Facility EPF-3 Plant Expansion, Banyu Urip, Cepu — Mobil Cepu Ltd
Specification Summary
- 5.06 MMBtu/hr for cooling of 12,571 BOPD Crude Oil from 217°F to 145°F
- Forced draft, ASME U-Stamp & National Board
- Moore Fans Class 10000 S30 VE Manual HD EC RH, diameter 8 FT, 6 blades
- WEG NEMA Motor Type 0940M, 20 hp (15kW), 3 phase, 380VAC, 4 pole, 1460 rpm, 50 Hz, NEMA Design B, Insulation Class F, Class 1 Div. 1, TEFC, SF1.15, 284T Frame V6R(D)
- Equipped with MCC F2100 series Eaton Cutler Hammer 20hp with VFD 9000X AF Drive Series Model SVX020A1-4A1B1, Vibration Switch Murphy VS2-EX
Code Compliance
- ASME VIII Div. 1 — ASME BPV Code Rules for Construction of Pressure Vessels
- API Std 661 — Air-Cooled Heat Exchangers for General Refinery Service
- NACE MR0175 — Standard Material Requirements Sulfide Stress Cracking Resistant Metallic Materials for Oilfield Equipment
- AWS D1.1 — Structural Welding Code Steel
What We Did
- Thermal Design, Mechanical Design, Structural Skid Analysis, Fan Rating & Drive Selection, 3-D Modeling, Construction Drawings, Electrical & Instrument Drawing
- Fabrication, testing & inspection, coating of header box, bundle and support structural
- Installation of motors, belt drives and fans, including belt alignment
- Installation of Electrical & Instrument Assembly & Install MCC F2100 series Eaton Cutler Hammer 20 HP
- Performance test at shop & site
Dehydration Unit30 MMSCFD TEG Dehydration Natural Gas Plant
Bangladesh Petroleum Exploration & Production Co. Ltd. — Consortium of Shengli Engineering & Consulting Co. Ltd. and Zicom Equipment Pte. Ltd., joint operation of PT. Transalindo Eka Persada and PT. Heat Transfer Solutions Indonesia
Specification Summary
- Design and fabricate: TEG Contactor Skid Package, Glycol Dehydration Skid Package
Code Compliance
- ASME VIII Div. 1 — ASME BPV Code Rules for Construction of Pressure Vessels
- TEMA — Standards of the Tubular Exchanger Manufacturers Association
- API Std 660 — Shell-and-Tube Heat Exchangers
- API Std 661 — Air-Cooled Heat Exchangers for General Refinery Service
- API Std 662 Part 2 — Plate Heat Exchangers / Brazed Aluminum Plate-fin Heat Exchangers
- ASME B31.3 — Process Piping
- AWS D1.1 — Structural Welding Code Steel
What We Did
- Thermal Design, Mechanical Design, Structural Skid Analysis, 3-D Modeling, Isometric Drawings, Construction Drawings, design and drawings for both skids including piping
- Supply Glycol/Glycol Heat Exchanger (Brazed PHE)
- Design and supply Gas/Glycol Exchanger (STHE)
- Design and supply Glycol Reboiler c/w Burner Management System
- Design and supply Still Overhead Gas Cooler (ACHE)
- Design and supply Glycol Reflux Condenser (Coil Type)
- Design and supply Glycol Air Cooler (ACHE)

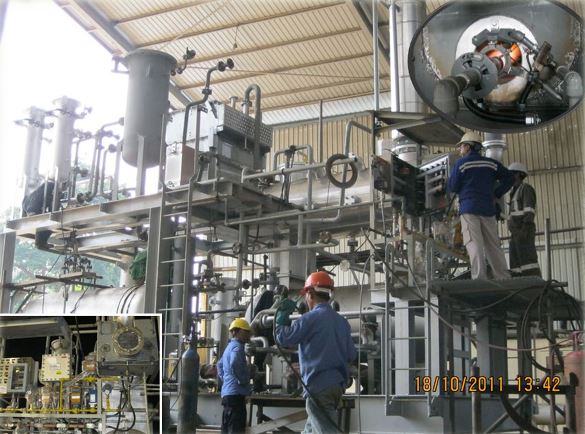

- FAT for Air Coolers and Burner Management System

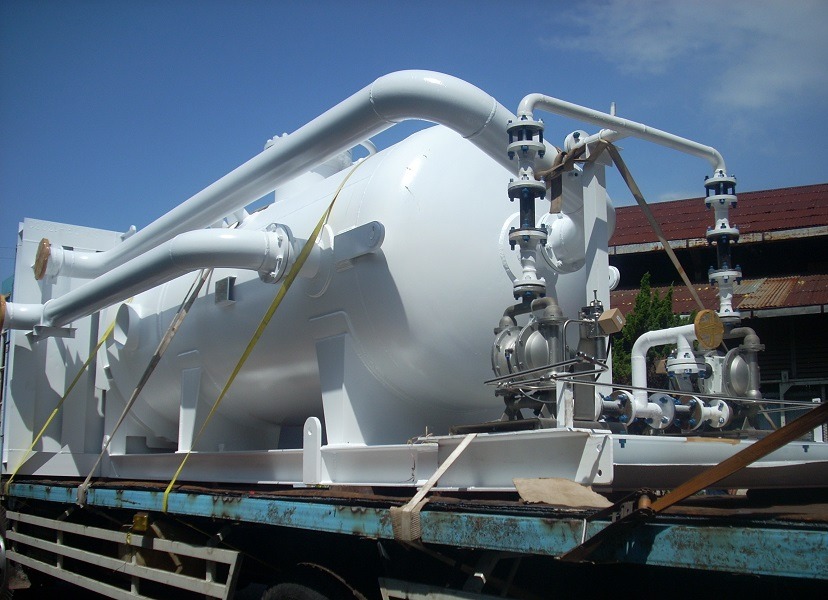

Pressure VesselWFT WIRA 1 & 2 Well Test Barges
PT. Weatherford Indonesia
Specification Summary
- Two (2) units Vent Gas/Closed Drain Vessel, V-501 & V-801, 1219 ID x 3048 T/T
- Two (2) units Flare Gas Scrubber, V-401-W1 & V-401-W2, 1676 ID x 3048 T/T
- One (1) unit 100 BBL Dual Compartment Surge Tank, 2438 ID x 3048 T/T
Material Specification
- Plain carbon steel SA516 Gr. 70 and NACE MR0175
Code Compliance
- ASME VIII Div. 1 — ASME BPV Code Rules for Construction of Pressure Vessels
- ASME B31.3 — Process Piping
- AWS D1.1 — Structural Welding Code Steel
What We Did
- Mechanical Calculations, Construction Drawings, Structural Skid Drawings and Isometric Drawings
- Fabrication, testing & inspection, coating of Pressure Vessels, Structural Skids & Pipings
- Volumetric Calibration of Surge Tank
- MIGAS Certification and Lloyd's Register
- Delivery at site
